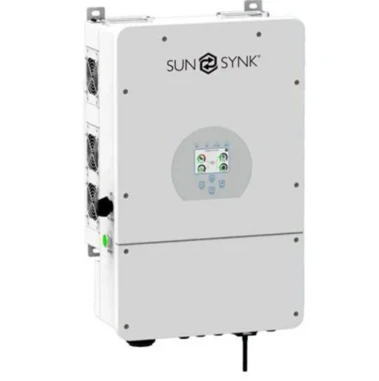

Sunsynk 50Kw Hybrid Inverter

Sunsynk 50kW Hybrid Inverter – Three Phase High Voltage Commercial Solar Storage Solution

Sunsynk 50Kw Hybrid Inverter

The 50kW Hybrid Inverter is a powerful three-phase high-voltage hybrid inverter designed for commercial, industrial, agricultural, and large-scale solar installations. It intelligently manages energy from solar PV arrays, battery storage, the utility grid, and backup generators, ensuring maximum efficiency, reliable backup power, and flexible system expansion.

With four MPPT trackers, 30% DC oversizing capability, and parallel expansion up to 250kW, the Sunsynk 50kW inverter is ideal for advanced hybrid solar storage systems requiring high performance and scalability.

---

Key Features of the Sunsynk 50kW Hybrid Inverter

High 50kW Three-Phase Output for Commercial Applications

Designed for demanding installations, this inverter delivers stable three-phase AC output suitable for:

• Commercial buildings
• Warehousing facilities
• Factories and workshops
• Farms and irrigation systems
• Large estates and lodges
• Sunsynk 50Kw Hybrid Inverter

---

Four MPPT Trackers for Flexible Solar Array Design

The inverter includes 4 independent MPPT trackers, allowing flexible PV configurations and improved solar energy harvesting across multiple roof orientations or ground-mount layouts.

Benefits include:

• Higher daily energy production
• Improved shading tolerance
• Flexible PV system design
• Increased overall system efficiency

---

50Kw Hybrid Inverter Supports 30% PV Oversizing for Maximum Energy Yield

The Sunsynk 50kW hybrid inverter allows DC oversizing up to 30% above rated AC output, helping increase solar generation throughout the day and improve return on investment.

---

Sunsynk 50Kw Hybrid Inverter Operates With or Without Battery Storage

This inverter supports battery-assisted hybrid systems or battery-free grid-tied operation, offering flexible installation options depending on project requirements.

Compatible with:

• High-voltage lithium battery systems
• Commercial solar storage solutions

---

Parallel Expansion up to 50kW System Capacity

For large installations, the inverter supports parallel connection of up to 5 units, enabling scalable hybrid systems up to 250kW output capacity.

Ideal for:

• Industrial facilities
• Shopping centres
• Agricultural operations
• Solar microgrids
• Commercial rooftop PV systems

---

Integrated Smart Monitoring with Wi-Fi Connectivity

Built-in Wi-Fi remote monitoring enables real-time performance tracking and system management via the Sunsynk monitoring platform.

Monitoring benefits include:

• Live solar production tracking
• Battery performance monitoring
• Grid interaction analysis
• Remote diagnostics and optimisation

---

Built-In Safety & Surge Protection (Type II SPD)

The inverter includes integrated protection features to ensure safe and reliable operation:

• Type II AC/DC surge protection
• Overload protection
• Over-temperature protection
• Short-circuit protection
• Anti-islanding protection

---

Designed for High-Voltage Commercial Battery Systems

The Sunsynk 50kW inverter supports high-voltage battery storage systems, improving efficiency and reducing current losses in large-scale hybrid installations.

---

Installation & Compliance Requirements (South Africa)

 Installation must be completed by a registered three-phase electrician (Red Seal) in compliance with SANS and Department of Labour regulations.

Additional installer requirements:

• Product-specific training recommended
• Compliance required for warranty validation
• Correct breaker sizing recommended per SANS 10142-1

Recommended protection:

Maximum pass-through current: 150A
Recommended breaker size: 100A

Failure to comply may affect warranty coverage.

---

Technical Specifications –50kW Hybrid Inverter

Inverter Type: Three-phase high-voltage hybrid inverter
Rated Output Power: 50kW
MPPT Configuration: 4 MPPT trackers
DC Oversizing Capacity: Up to 30% above rated output
Battery Compatibility: High-voltage lithium battery systems
Parallel Support: Up to 5 units (250kW total)
Monitoring: Wi-Fi remote monitoring included
Protection: Type II AC/DC surge protection
Operating Modes: Hybrid / grid-tied / battery-supported operation
Recommended Breaker Size: 100A

---

Why Choose the Sunsynk 50kW Hybrid Inverter?

The 50kW three-phase hybrid inverter is ideal for businesses requiring high-capacity solar conversion, flexible battery integration, scalable system expansion, and advanced energy management. It delivers strong performance for commercial environments seeking reduced grid reliance and improved energy stability.

Best suited for:

• Commercial solar systems
• Industrial facilities
• Agricultural operations
• Warehouses and factories
• Solar microgrid installations in South Africa

---

Buy the 50kW three-phase hybrid inverter with 4 MPPT trackers, 30% PV oversizing support, high-voltage battery compatibility, and parallel expansion up to 250kW—ideal for commercial solar systems.
