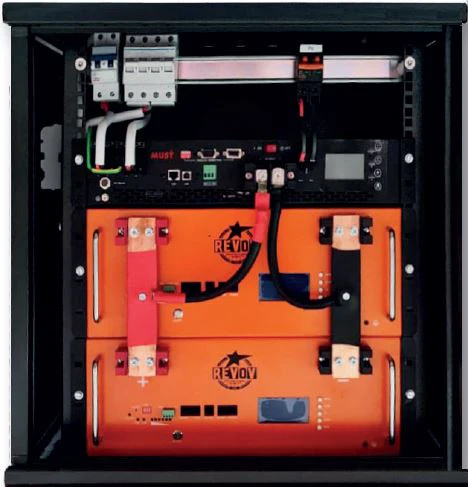

Revov 2LiFE-200-10.2 (SYS-2LiFE-CUBE-200-10.2) – 10.2kWh Lithium Solar Battery System
Revov 2LiFE-200-10.2
We are direct suppliers of the Revov 2LiFE-200-10.2 lithium battery system, a high-performance 10.2kWh LiFePO₄ energy storage solution designed for residential and commercial solar applications. This advanced battery provides reliable backup power, improved solar self-consumption, and scalable storage for modern hybrid and off-grid energy systems.
Built with premium lithium iron phosphate (LiFePO₄) technology, the Revov Cube battery delivers excellent safety, long cycle life, and dependable daily cycling performance.
Key Features
High-Capacity Energy Storage
- Battery Capacity: 200Ah
- Energy Capacity: 10.2kWh
- Nominal Voltage: 51.2V
- Available Depth of Discharge: 100%
- Max Peak Power Output: 5kW
Ideal for homes and businesses requiring dependable backup power during outages or load shedding.
Intelligent Built-In BMS Protection
The integrated Battery Management System (BMS) ensures safe and optimized performance by providing:
- Cell and battery voltage monitoring
- Ambient, MOSFET, and cell temperature monitoring
- Intelligent cell balancing
- Watchdog protection for safe charge/discharge control
- LCD display for real-time battery performance monitoring
This improves battery lifespan and ensures safe operation under varying conditions.
Solar Charging Capability
- PV Operating Voltage: 60 – 130VDC
- Max PV Charge Current: 80A
- Max PV Array Power: 4000W
- Max PV Open Circuit Voltage: 145VDC
- Round-trip inverter efficiency: 90%
Supports efficient solar charging and optimized energy storage performance.
Durable & Long-Life Performance
- Design Life: 5000+ cycles @ 25°C
- Recharge Time: Approx. 4 hours @ 40A
- Operating Temperature: 0°C – 45°C
- Storage Temperature: −10°C – +45°C
- Protection Class: IP20
Engineered for reliable long-term operation in indoor energy storage environments.
Robust Cube-Style Installation Design
- Dimensions: 600 × 600 × 635 mm
- Weight: 124 kg
- Compact cube-style enclosure
- Suitable for garages, utility rooms, and dedicated solar battery spaces
- Clean, professional installation appearance
Certifications & Compliance
- TUV SÜD
- CE
- UL1642
- UN38.3 transport certification
- EN61000 EMC compliance
Ensures safe operation and international installation compatibility standards.
Applications
The Revov 2LiFE-200-10.2 lithium battery system is ideal for:
- Residential solar energy storage systems
- Commercial backup power installations
- Hybrid inverter setups
- Off-grid energy systems
- Load shedding protection solutions
Why Choose Revov 2LiFE-200-10.2?
- High-capacity 10.2kWh lithium storage
- Integrated intelligent BMS with LCD monitoring
- Safe and stable LiFePO₄ battery chemistry
- Supports solar charging up to 4000W PV input
- Scalable solution for growing energy demands
- Reliable backup during South African load shedding
Buy Revov 2LiFE-200-10.2 10.2kWh lithium battery system with built-in BMS and LCD monitoring. Reliable solar storage solution for residential and commercial backup power and hybrid systems in South Africa.
