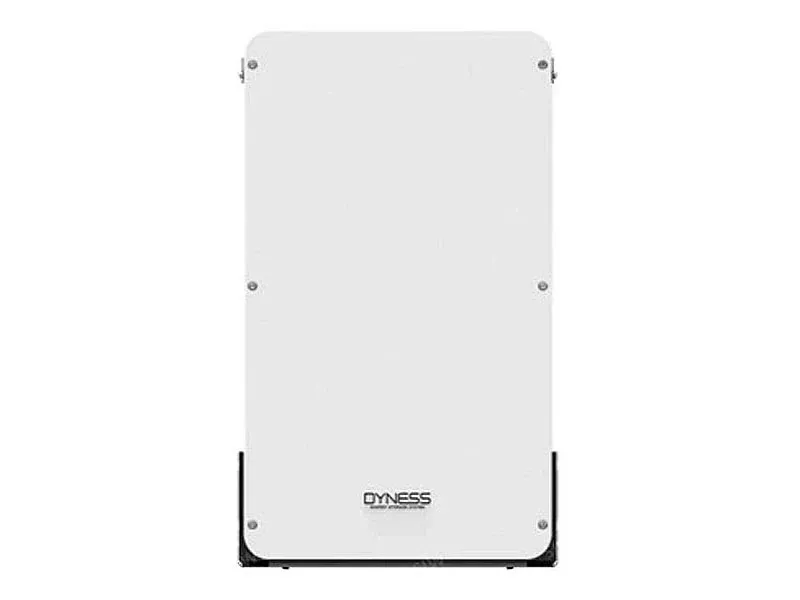

Dyness Powerbox Pro 10.24kWh Lithium Battery – Reliable, Safe & Scalable
Dyness Powerbox Pro 10.24KWH
The Dyness Powerbox Pro 10.24kWh Lithium Battery is a high-capacity, modular energy storage solution designed for residential and small business solar systems. With advanced LiFePO4 (lithium iron phosphate) technology, it delivers safe, long-lasting, and efficient energy storage, giving you more control over your power usage and reliable backup during outages.
Key Features
- Capacity: 10.24 kWh nominal energy (9.728 kWh usable) – perfect for medium-to-large homes.
- High Power Output: 5.12 kW continuous, 10.24 kW peak – handles high-demand appliances easily.
- Safe & Stable: LiFePO4 chemistry and IP65-rated protection for indoor or outdoor installation.
- Long Cycle Life: ≥6,000 cycles with 90% depth of discharge.
- Flexible & Scalable: Connect up to 5 units in parallel for expanded energy storage.
- Intelligent BMS: Monitors voltage, current, temperature, and state of charge to protect battery health.
- Versatile Installation: Floor-standing, wall-mounted, or modular stacking.
- Efficient & Cost-Saving: High round-trip efficiency maximizes usable energy.
Why Choose Dyness Powerbox Pro?
1. Dependable Backup Power
Store excess solar energy during the day and use it when you need it most – evenings, nights, or during power outages.
2. Safe & Smart Operation
The Battery Management System (BMS) protects against overcharge, over-discharge, overcurrent, overheating, and short circuits, keeping your battery and home safe.
3. Modular & Future-Ready
Start with a single unit and expand later. The Powerbox Pro can scale up to 5 units in parallel, ensuring your system grows with your energy needs.
4. Flexible Installation
IP65-rated design allows for indoor or outdoor installation, with options for wall mounting or floor standing. Ideal for garages, utility rooms, or battery cabinets.
5. Seamless Integration
Compatible with a wide range of solar inverters, making it perfect for new solar systems or upgrades to existing setups.
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Energy | 10.24 kWh |
| Usable Energy | 9.728 kWh |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8–57.6 V |
| Nominal Capacity | 200 Ah |
| Nominal Power | 5.12 kW |
| Peak Power | 10.24 kW |
| Recommended C Rate | 0.5C |
| Charge/Discharge Current | 100 A |
| Depth of Discharge | 90% |
| Cycle Life | ≥6,000 cycles |
| Temperature Range | Charge 0–55°C / Discharge -20–55°C |
| Communication | CAN/RS485/RS232 |
| Protection Level | IP65 |
| Parallel Expansion | Up to 5 units |
| Alarms | Overcharge / Over-discharge / Overcurrent / Overtemperature / Short Circuit |
| Certifications | UN38.3 / CE-EMC / IEC62619 / IEC62040 / IEC60730 / UKCA / CEC Accredited |
The Dyness Powerbox Pro 10.24kWh Lithium Battery is a safe, efficient, and expandable energy storage solution. It’s perfect for maximizing solar self-consumption, reducing grid dependence, and providing reliable backup power, giving you peace of mind and energy independence for years to come.
