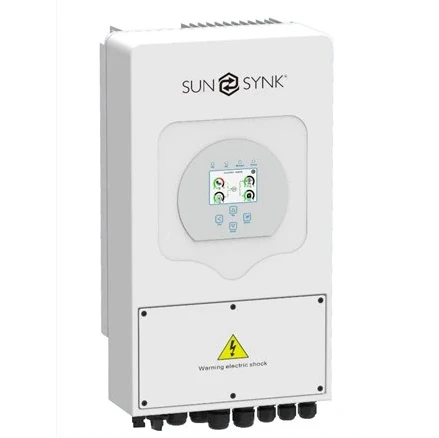

Sunsynk 8kW Hybrid Inverter

Important

It is recommended that the correct size output breaker as per SANS10142-1 is used with this inverter. Inverter max pass through current – 50A Recommended circuit breaker size – 40A

The Sunsynk 8kW 48Vdc Single Phase Hybrid Inverter with Wi-Fi included is a versatile and powerful energy management unit that combines solar PV conversion, battery storage support, and grid functionality into one all-in-one hybrid solution. Designed to optimise energy use, support backup power during grid outages, and provide seamless integration between multiple power sources, this inverter is well-suited to homeowners looking to reduce electricity costs and increase energy independence.

Hybrid Power Management

As a hybrid inverter, this Sunsynk unit intelligently balances energy from solar panels, battery banks, the electrical grid, and even a generator. Its continuous output of 8 000 W makes it capable of powering significant household loads — from lighting and appliances to large motors — without the need for multiple devices. In backup scenarios, the inverter can deliver up to 8 800 W for short bursts and handle surge loads of up to 12 000 W, helping to start heavier loads like pumps or air conditioners.

The inverter supports multiple operating modes, including grid-tied, off-grid, battery-only, and full hybrid operation, enabling flexibility for different system designs and user preferences. With automatic switching between modes and a transfer time typically ≤ 10 ms, essential loads remain powered with minimal interruption during outages.

Solar & Battery Integration

The Sunsynk 8kW inverter features a dual MPPT (Maximum Power Point Tracking) design, which maximises energy harvest from solar arrays by independently tracking the peak output point of two PV strings. Typical MPPT voltage range is 125 V–425 Vdc, accommodating a wide variety of solar module configurations.

Battery compatibility covers both lead-acid and lithium-ion chemistries, with a nominal 48 Vdc operating range (often ~40 V–60 V). The built-in battery charger can handle high charge/discharge currents (often around 190 A), making it efficient for rapid energy cycling and extended backup durations.

Smart Monitoring & Safety

One standout feature is the Wi-Fi logger included as standard, enabling remote monitoring and control via mobile apps like SolarMan. Users can track system performance, battery state, incoming solar power, and grid interactions in real time.

The inverter includes multiple protections — such as anti-islanding, over/under voltage protection, short circuit safeguards, and surge protection — ensuring durability and safety in daily use.

Installation & Warranty

Intended for installation by qualified technicians, this Sunsynk unit supports parallel operation of up to 16 inverters with the same firmware, offering scalability for larger systems. Standard warranty coverage is typically 5 years, with local variations depending on installer and region.
