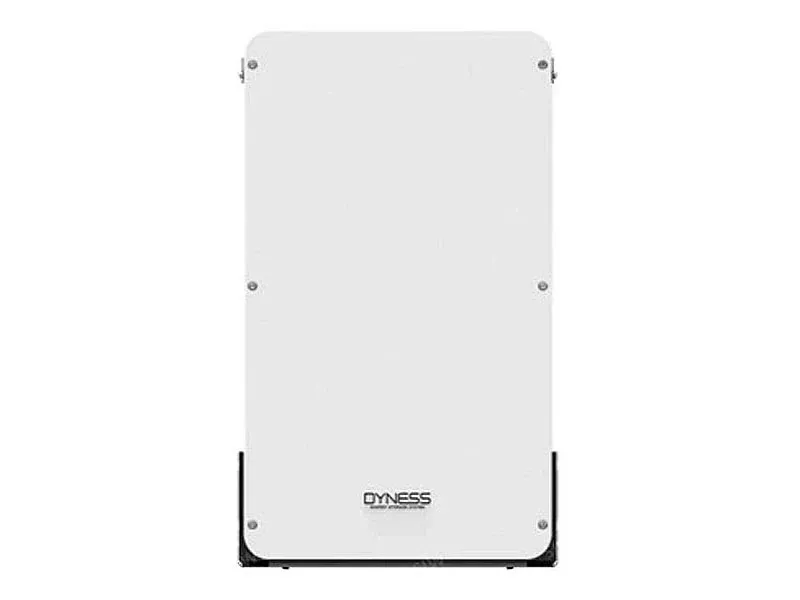

Dyness Powerbox Pro 10.24KWH
Dyness Powerbox Pro 10.24KWH Lithium Battery for sale
Powerbox Pro
The Powerbox Pro is a type of deep cycle and high capacity LFP battery with improved safety, long lifespan, and optimized user experience. It is especially designed with IP65 for more flexible and easier installation indoor or outdoor with wall-mounted and landed installation options. With up to 10 kWh for a single unit and max. 5 units in parallel with superior performance, it can meet the household electricity demand. Get ready with Powerbox Pro for super power storage for your life.
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 10.24 kWh |
| Operating Voltage | 44.8 ~ 57.6V |
| Usable Energy | 9.728kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Power | 5.12kW |
| Peak Power | 10.24kW |
| Recommended C Rate | 0.5C |
| Recommended Charge/Discharge Current | 100A |
| Recommended Depth of Discharge (DOD) | 90% |
| Net Weight | 103 kg |
| Dimension[W*D*H] | 555*210*928 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | IP65 |
| Expansion | up to 5 units in parallel |
| Color | White |
| Alarms | Overcharge/Over-discharge/Overcurrent/ Overtemperature/Short Circuit |
| Pros | Can be used in both off-grid and hybrid setups, compact design, floor or wall-mounted |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/IEC62040/IEC60730/UKCA/CEC Accredited |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 90% DOD
The Dyness Powerbox Pro 10.24 kWh Lithium Battery is a versatile and efficient energy storage solution designed to help homeowners and small businesses maximise their solar power usage, reduce reliance on the grid, and ensure dependable backup power. Built with advanced lithium-ion technology, the Powerbox Pro delivers high energy density, excellent cycle life, and reliable performance in a compact, modular format ideal for residential energy systems.
With a usable capacity of 10.24 kWh, the Powerbox Pro is well suited to medium-to-large homes that consume significant electricity daily or require robust load-shedding backup. It allows users to store excess energy generated from solar panels during daylight hours and use that stored power in the evenings or overnight. This not only increases self-consumption of renewable energy but also reduces energy bills by shifting usage away from peak tariff periods.
Safety and durability are central to the Powerbox Pro’s design. The battery incorporates a sophisticated Battery Management System (BMS) that continuously monitors parameters such as voltage, current, temperature, and state of charge. This intelligent system balances cell performance and protects the battery from overcharge, deep discharge, short circuits, and thermal risks, ensuring safe operation and prolonging the battery’s lifespan.
One of the major advantages of the Dyness Powerbox Pro is its modular architecture. Multiple Powerbox Pro units can be stacked or connected in parallel to expand storage capacity as energy needs grow. This scalability makes it suitable not only for current requirements but also for future expansions without the need for major system upgrades.
The Powerbox Pro integrates seamlessly with a wide range of solar inverters on the market, making it a flexible choice for both new solar installations and upgrades to existing systems. Its compact footprint and easy installation process make it ideal for garage, utility, or dedicated battery storage spaces.
Overall, the Dyness Powerbox Pro 10.24 kWh Lithium Battery combines safety, reliability, and scalability to provide an effective energy storage solution. Whether you’re aiming to reduce grid dependency, improve backup power capability during outages, or maximise solar energy utilisation, the Powerbox Pro delivers a robust and future-ready storage option.
