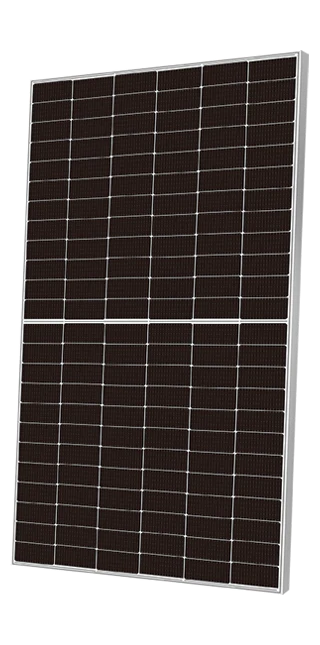

Trina610 Watt Solar Panel

Trina610 Watt Solar Panel

Trina610 Watt Solar Panel

-type i-TOPCon bifacial dual glass

Monocrystalline module 610W MAXIMUM POWER OUTPUT

0~+5W POSITIVE POWER TOLERANCE

PRODUCT: TSM-NEG19RC.20

POWER RANGE: 585-610W

22.6% MAXIMUM EFFICIENCY

High customer value

• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time

• More energy harvest with cutting-edge N-type i-TOPCon technology

• Designed for compatibility with existing mainstream system components

• Higher container space utilization effectively reduces the freight cost High power up to 610 W

•Up to 22.6% module efficiency with high density interconnect technology

•SMBB (Super multi-busbar)technology for better light trapping e ect, lower series resistance and improved current collection High reliability

• Minimized micro-cracks with innovative non-destructive cutting technology

• Ensured PID resistance through cell process and module material control

• Resistant to harsh environments such as salt, ammonia, sand, high     temperature and high humidity areas

• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load High energy yield

• Excellent IAM (Incident Angle Modi er) and low irradiation performance, validated by 3rd party certi cations

• Lower degradation：1% rst year，0.4% annually thereafter

• Lower temperature coefficient (-0.30%) • Up to 30% additional power gain from back side depending on albedo.

The High‑Efficiency Trina Solar Panel 580‑610W for Renewable Ene — commonly referenced in the Trina Solar Vertex N/NEG19R series — represents a modern, high-output 610 W photovoltaic (PV) module designed for residential, commercial, and utility solar installations. These panels use advanced N-type monocrystalline silicon cells and cutting-edge manufacturing techniques to deliver strong energy yields, long-term reliability, and excellent efficiency.

📈 Power & Performance

With a peak power rating around 610 W, this module delivers substantial energy per panel, making it ideal for large-scale rooftop, ground-mounted, or hybrid solar arrays where maximizing output per square metre is essential. The high module efficiency (often above 22 %) means more of the sun’s energy is converted into usable electricity, improving overall system output and reducing the number of panels needed for a given capacity.

The panel typically incorporates half-cut N-type cells with multi-busbar or enhanced interconnect technology, which helps reduce electrical losses, mitigate micro-cracking, and boost performance in real-world conditions — particularly under low light or hot climates.

🛡️ Durability & Reliability

Constructed with tempered AR-coated glass and an anodized aluminium frame, the panel is built to withstand harsh environmental conditions, including heat, humidity, salt mist, and sand. Panels like these are often tested to meet stringent IEC standards for mechanical loads and hail impact.

Trina Solar generally backs its products with long warranties, commonly offering a decades-long performance guarantee (e.g., ~25 years with high retained output), which provides peace of mind for long-term solar investments.

🔌 System Compatibility

These modules are designed for high 1500 V DC system voltage, allowing longer string configurations and reduced balance-of-system (BOS) costs. Their electrical characteristics make them compatible with most modern string and central inverters used in residential, commercial, or industrial solar installations.

In summary, the Trina Solar 610 W panel delivers high power output, excellent efficiency, and robust build quality, making it a strong choice for efficient and long-lasting solar energy generation.
