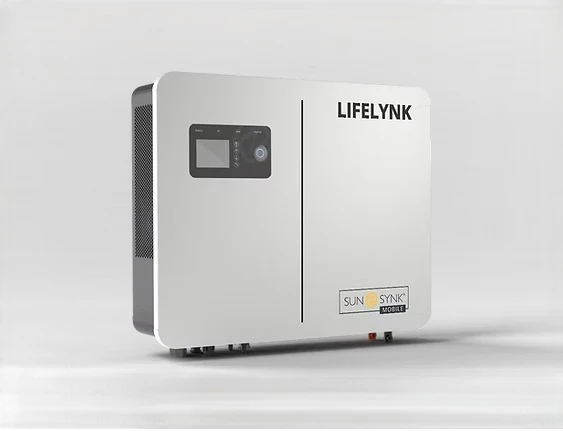

6kW Sunsynk Lynks Inverter

Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Powerforum Store (PTY) LTD will not be held liable for any product malfunctions as a result of incorrectly installed systems.

The Sunsynk Lynks 6kW 48Vdc Single Phase Hybrid Inverter is a robust and flexible power conversion solution designed to integrate solar photovoltaic (PV) generation, battery storage, and grid interaction into one intelligent unit. It’s particularly suited for residential or light-commercial solar installations that demand both efficiency and resiliency, giving users the ability to maximise self-consumption, save on electricity costs, and provide backup power during outages.

Hybrid Solar + Storage Performance

As a hybrid inverter, the Sunsynk Lynks combines traditional grid-tie inverter capabilities with energy storage management. It can operate in grid-connected, off-grid, or backup modes, seamlessly shifting between solar-PV supply, battery discharge, and grid support based on system conditions. During grid outages, it rapidly transitions to battery power to maintain uninterrupted electricity to essential loads — the switch-over time is around 10 milliseconds, which helps prevent equipment interruption.

With a rated AC output of 6 000 W and the ability to handle up to 12 000 VA of surge power, this inverter supports significant household demand, including fridges, lights, TVs, and modest workshop tools. The device is configurable for 220 V/230 V/240 V single-phase output at 50 Hz or 60 Hz, making it adaptable to regional electrical standards.

Smart Solar Harvesting & Battery Integration

The Lynks inverter has dual MPPT (Maximum Power Point Tracking) inputs, which independently optimise energy extraction from two solar PV strings. Each MPPT channel supports up to ~15 A, improving conversion efficiency and overall energy harvest throughout the day. MPPT efficiency can approach 99.9 %, ensuring minimal energy loss between the solar array and battery bank or load.

Designed for a 48 V battery bank, the inverter is compatible with both lithium-ion and lead-acid battery technologies, offering flexibility in storage choice. Battery voltage range typically sits between ~40 V and ~60 V, allowing for scalable battery configurations.

Connectivity, Monitoring & Protection

Remote system monitoring is supported via an integrated Wi-Fi dongle, allowing homeowners or installers to track performance and diagnose issues through smartphone or web apps. A CT clamp is usually included for grid consumption monitoring — enabling smart control of energy flows between sockets, solar, battery, and grid.

From a durability perspective, the unit generally carries an IP41 ingress protection rating for indoor environments, and often a 5-year warranty with registration. Built-in safeguards — such as overcharge protection, low-voltage protection, overload protection, and short-circuit protection — ensure reliable long-term operation.

Why Choose Sunsynk Lynks?

The Sunsynk Lynks 6kW hybrid inverter appeals to users who want a cost-effective, high-performance inverter capable of managing solar PV, battery storage, and grid interaction without complex multi-component systems. Its dual MPPT design, robust output, fast transition for backup, and smart connectivity make it a strong contender in hybrid solar power setups.
