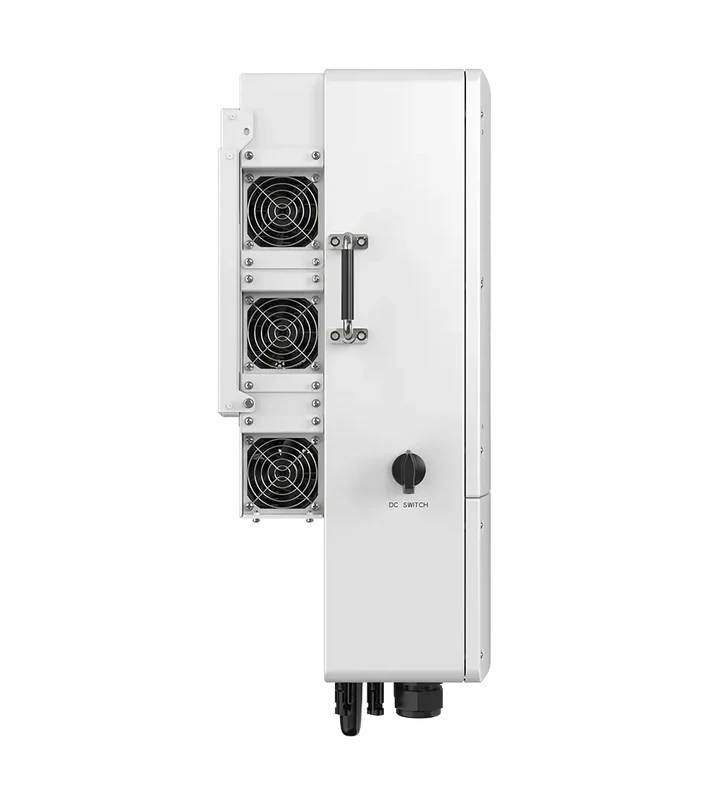

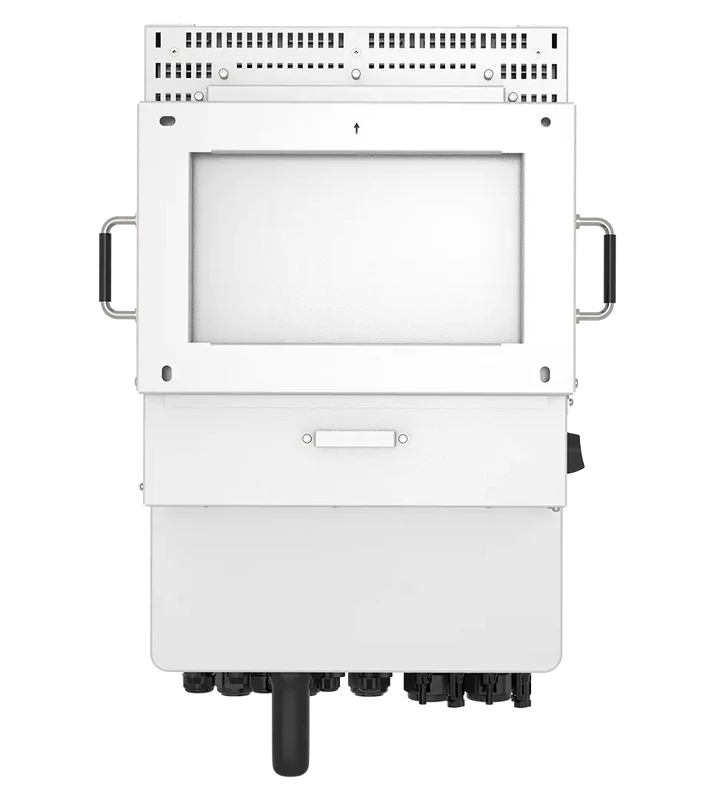

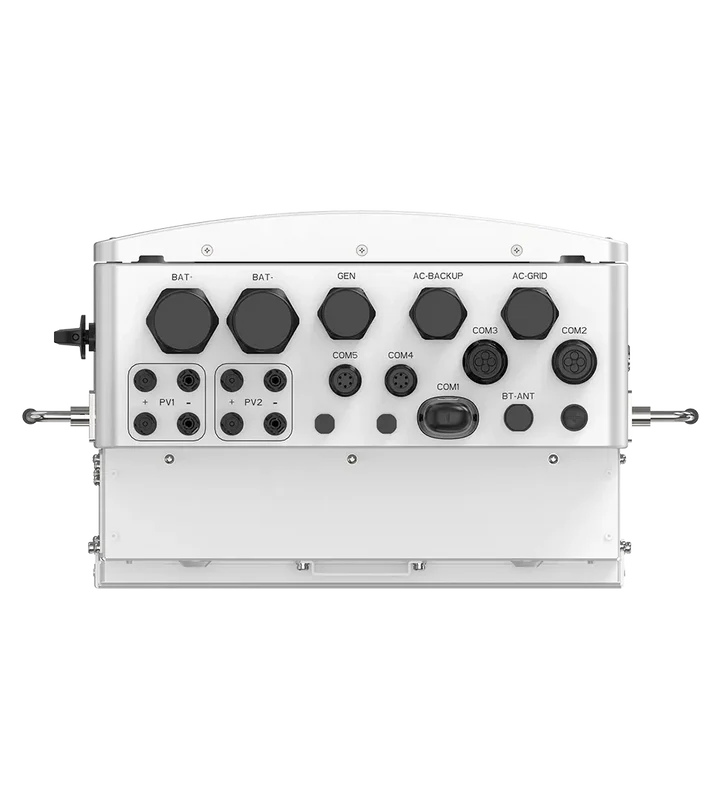

SolisS6 12kW Hybrid Inverter

The Solis Series 6 Hybrid inverter range offers advanced features suitable to meet and excel in todays solar market. Smart LCD display and Bluetooth allow for quick set-up in under 5 minutes (no Wi-Fi required), generator integration and so much more.

Features:

• Allowable PV of up to 19.2kW, on the 200-1000V MPPT.
• 2-MPPTs, rated at 20/40A each, with 3-string inputs each allowing for 3 strings of 20A high power/current PV modules.
• Generator connectivity with automatic On/Off control.
• Parallel up to 6 inverters for up to 72kW of backup.
• 10 second, 200% surge power backup overload capability.
• 24 hour real-time intelligent energy management – Bluetooth/Wi-Fi/App.
• Uninterrupted power supply with 10ms reaction time.
• Comes with a Wi-Fi/LAN datalogger a
• 5-year warranty – extendable to 10-years.

• The Solis S6 12kW Three Phase Low Voltage Hybrid Inverter is a powerful and versatile energy solution engineered for medium to large solar installations that require seamless integration between photovoltaic generation, battery storage, and grid interaction. Designed for both commercial and residential three-phase systems, this hybrid inverter delivers high performance, intelligent energy management, and dependable backup power — making it an excellent choice for users seeking greater energy independence and efficiency.

  At the heart of the Solis S6 12kW Hybrid Inverter is its ability to handle substantial solar input while maintaining efficient conversion and system stability. It supports a generous PV input capacity, enabling solar arrays to be oversized relative to the inverter’s rated output. This helps maximise energy harvest throughout the day, allowing users to capture more of the sun’s potential even during varying weather conditions. Dual MPPT (Maximum Power Point Tracking) technology optimises power extraction from multiple panel strings with different orientations or shading patterns, ensuring consistent performance and higher overall yield.

  Battery integration is a key strength of this inverter. It supports low-voltage battery banks — typically lithium-ion or lead-acid systems within its compatible voltage range — allowing users to store excess solar energy for use during peak demand periods, outages, or times of low sunlight. The intelligent energy management system enables configurable operating modes, such as prioritising self-consumption, peak shaving, or full backup support, depending on user needs.

  One of the standout features is the inverter’s backup and UPS (Uninterruptible Power Supply) capability. In the event of a grid failure, the Solis S6 12kW can quickly switch to battery or solar power to maintain critical loads with minimal disruption. This makes it particularly useful in regions with frequent outages or load shedding. Additionally, it offers strong surge capacity to handle short-duration overloads, helping appliances with high startup currents — such as motors or pumps — operate more reliably.

  Installation and user experience are streamlined with a clear LCD display and built-in communication options, including Bluetooth and Wi-Fi for remote monitoring. Real-time data on energy production, consumption, and battery status empowers users to make smarter decisions about their energy usage while facilitating easier system maintenance.

  Scalability is another advantage: multiple Solis S6 12kW inverters can be connected in parallel to support larger installations or three-phase balancing across multiple units. Coupled with robust build quality and comprehensive warranty options, the Solis S6 12kW Three Phase Low Voltage Hybrid Inverter presents a compelling option for those seeking a reliable, efficient, and future-ready hybrid solar solution.
