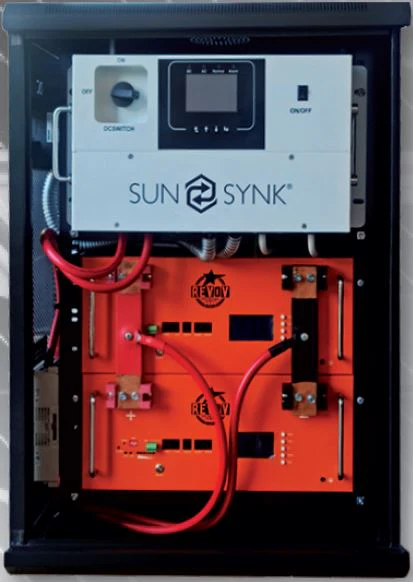

Revov SYS-2LiFe-CUBE800

Revov SYS-2LiFe-CUBE800

Revov SYS-2LiFe-CUBE800- SS-200-10.2

This Revov SYS-2LiFe-CUBE800 comes with Guarantee

Specifications

OUTPUT
Transfer Time Max 20ms
Waveform Pure Sinewave
Power Output 6000W
Max Peak Power Output 12 000W for 10sec
Voltage 230V

BATTERY
Nominal Voltage 51.2VDC
Nominal Capacity 200Ah
Bulk/Absorption Voltage 55.5V
Floating Charge Voltage 54.5V
Max Charge Current Preset to 60A
Energy Capacity 10.2kWh
Recommended Charge Current 60A
Available Depth of Discharge 95%
Maintenance Charge the Battery every
6 months when not in use.

SOLAR CHARGER
Max Charging Current 135A
System Voltage 48VDC
Operating Voltage Range 100 ~ 500VDC
Max. PV Array Open Circuit Voltage 500VDC
Max PV Array Power 7800W
DIMENSIONS
Dimension [LxWxH] 600mm x 600mm x 800mm

The Revov SYS-2LiFe-CUBE800-SS-200-10.2 is a high-performance lithium iron phosphate (LiFePO₄) energy storage solution designed to deliver dependable, efficient, and scalable power for residential and commercial applications. With a usable capacity of 10.2kWh, this battery system is engineered to meet the growing demand for reliable solar storage and backup power in modern energy systems.

Built using advanced LiFePO₄ cell technology, the CUBE800 offers exceptional thermal stability, enhanced safety, and a long operational lifespan. Compared to traditional lead-acid batteries, LiFePO₄ chemistry provides superior cycle life, deeper depth of discharge, and consistent performance over time. This makes the Revov SYS-2LiFe-CUBE800-SS-200-10.2 an ideal choice for users seeking long-term energy reliability with reduced maintenance requirements.

The system incorporates an intelligent Battery Management System (BMS) that continuously monitors voltage, temperature, and current levels to protect against overcharging, over-discharging, overheating, and short circuits. This advanced protection ensures optimal battery health and safe operation, even in demanding environments. The integrated communication capabilities allow seamless compatibility with a wide range of leading hybrid and off-grid inverters, enabling smooth system integration.

Designed for flexibility and scalability, the CUBE800 can be installed as a standalone unit or expanded with additional modules to increase total storage capacity. This modular design allows homeowners and businesses to grow their energy storage system as their power needs evolve. Whether supporting daily solar self-consumption, reducing peak electricity costs, or providing reliable backup during grid outages, this battery system adapts to changing energy demands.

The compact and robust cabinet design makes installation straightforward while maintaining durability in various operating conditions. Its modern enclosure not only protects internal components but also ensures a clean, professional appearance suitable for indoor installations such as garages, utility rooms, or dedicated energy spaces.

With a focus on sustainability and efficiency, the Revov SYS-2LiFe-CUBE800-SS-200-10.2 helps users maximize renewable energy usage and reduce reliance on the grid. By storing excess solar energy generated during the day for use at night or during power interruptions, it enhances energy independence and delivers long-term cost savings.

Overall, the Revov SYS-2LiFe-CUBE800-SS-200-10.2 stands out as a reliable, safe, and scalable lithium battery solution designed to meet the demands of modern solar and backup power systems.
