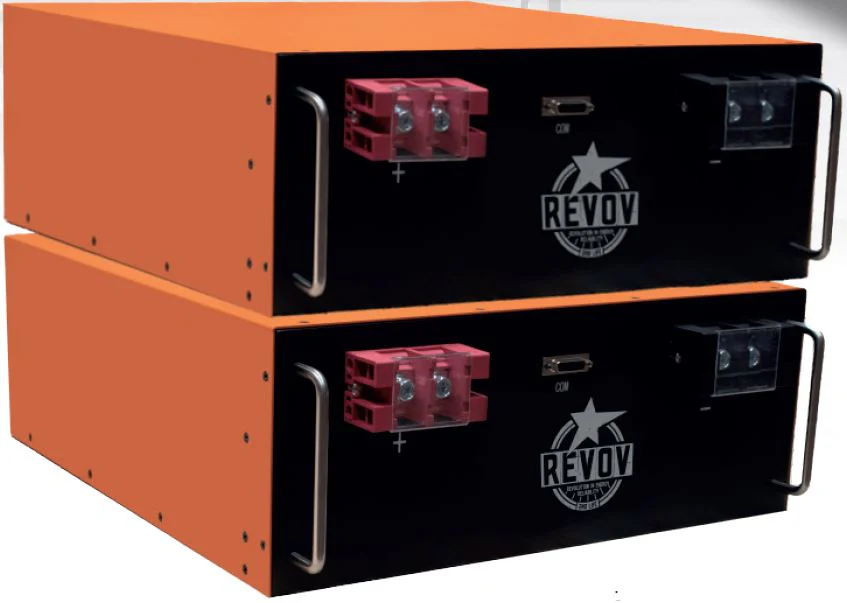

REVOV R9 11.2KWH 51.2V

REVOV R9 11.2KWH 51.2V

Revov SYS-2LiFE-R9-CAN-220-11.2 Battery

we are reliable suppliers of good quality REVOV R9 11.2KWH 51.2V

Spesifications

Model R9 220Ah
Battery Type LiFePO4
Battery Capacity 220Ah
Power Capacity 11.2kWh
Voltage
Nominal 51.2V
Float Charge 54.5V
Absorption Charge 55.5V
Current
Maximum Charge/Discharge 100/150A
DoD 100%
Weight & Dimensions
Battery Dimensions [LxWxH] 530mm x 442mm x 170mm
Battery Weight 59kg
BMS Dimensions (LxWxH) 282mm x 442mm x 46mm
BMS Weight 3.6kg
Total Weight 62.6 kg
Temperature
at Charging 0 – 45°C
at Discharging -10 – 45°C
Other
Enclosure Protection IP10
Design Cycle Life 7000
Access Interface CAN Bus
Compatible Inverters All leading inverter brands
Storage Conditions 15 – 25°C at 50% SoC
(charge every 6 months)
Warranty 10 years / 3500 cycles

The Revov SYS-2LiFE-R9-CAN-220-11.2 Battery is a high-performance 11.2 kWh Lithium-Iron Phosphate (LiFePO₄) energy storage system designed to deliver reliable, efficient, and scalable power for residential, commercial, and off-grid applications. Built around a robust 51.2 V, 220 Ah configuration, this battery system combines advanced technology with environmentally responsible design to meet the needs of today’s energy-conscious users.

At its core, the Revov R9 battery utilizes LiFePO₄ chemistry, which is known for its excellent thermal stability, safety, and long service life compared with traditional lead-acid or other lithium chemistries. The system is constructed using automotive-grade cells configured in a superior 16-cell arrangement, allowing it to withstand harsh conditions and maintain high energy density over extended periods of use.

A key feature of the SYS-2LiFE-R9-CAN-220-11.2 battery is its advanced Battery Management System (BMS) with CAN Bus communication. This intelligent BMS actively monitors and balances individual cell performance, providing real-time protection against over-charge, over-discharge, and temperature extremes. This not only enhances safety but also helps protect battery health and extend overall life.

Designed for flexibility, the Revov R9 battery supports 100% depth of discharge (DoD) — meaning all of its available capacity can be used before recharging — and it supports continuous discharge currents up to 150 A. Multiple units can be connected in parallel (up to 16 units) to expand total energy storage, making it suitable for larger installations or future system upgrades.

With a design cycle life of up to 7000 cycles and a 10-year/3500-cycle warranty, this battery is engineered for long-term performance and value. Whether paired with popular inverter brands like Victron and Sunsynk or integrated into hybrid and off-grid solar systems, the Revov R9 delivers dependable energy storage solutions that help users reduce electricity costs, enhance energy independence, and maintain backup power during outages.

Beyond performance, the use of repurposed second-life cells contributes to environmental sustainability by reducing electronic waste and giving previously used lithium-iron phosphate cells a new purpose in stationary energy storage.

In summary, the Revov SYS-2LiFE-R9-CAN-220-11.2 Battery stands out as a versatile, durable, and efficient option for anyone looking to invest in high-quality, scalable energy storage — whether for home, business, or industrial applications.
