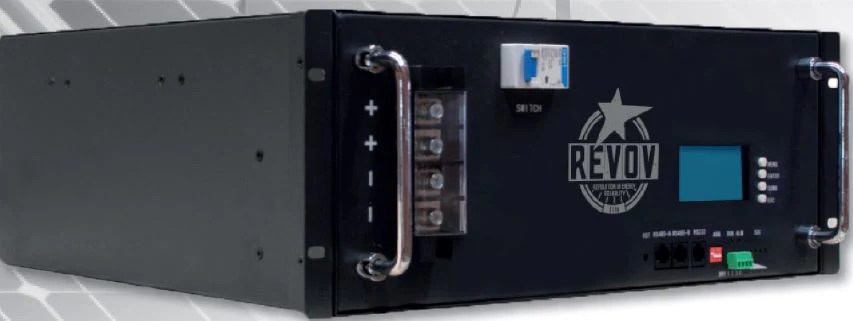

Revov LiFe-4U-IntBMS

Revov LiFe-4U-IntBMS

Revov LiFe-4U-IntBMS comes with Guarantee

Spesifications

B100 51.2V 100Ah 5.1kWh
Model B100
Battery Type LiFePO4
Battery Capacity 100Ah
Power Capacity 5.1kWh
Voltage
Nominal 51.2V
Float Charge 54.5V
Absorption Charge 55.5V
Current
Maximum Charge/Discharge 80/80A
DoD 100%
Weight & Dimensions
Battery Dimensions [LxWxH] 480mm x 482mm x 177mm
Battery Weight 42kg
Temperature
at Charging 0 – 45°C
at Discharging -10 – 45°C
Other
Enclosure Protection IP20
Design Cycle Life 7000
Communications Interface CAN Bus
Compatible Inverters All leading inverter brands
Storage Conditions 15 – 25°C at 50% SoC
(charge every 6 months)
Warranty 10 years / 3500 cycles

Revov LiFe-4U-IntBMS-B100-5.1 delivers 5.1kWh LiFePO4 energy storage with integrated BMS, reliable performance, and seamless solar compatibility. Designed for residential and light commercial applications, this advanced lithium battery provides a dependable solution for solar self-consumption, backup power, and off-grid systems.

Built using lithium iron phosphate (LiFePO₄) cell technology, the battery offers exceptional thermal stability, enhanced safety, and a long cycle life compared to traditional lead-acid alternatives. This chemistry ensures consistent output, deeper depth of discharge, and reduced maintenance requirements, making it a cost-effective and sustainable energy storage option over the long term.

The integrated Battery Management System (IntBMS) continuously monitors individual cell voltage, current, and temperature to protect against overcharging, over-discharging, overheating, and short circuits. This intelligent system not only enhances safety but also optimizes performance and extends battery lifespan. The built-in communication capabilities allow for smooth integration with a wide range of leading hybrid and off-grid inverters, ensuring reliable system operation and simplified monitoring.

With a nominal 48V configuration and 100Ah capacity, the Revov LiFe-4U-IntBMS-B100-5.1 is designed for easy installation in standard 4U rack-mounted systems. Its compact form factor makes it ideal for installations where space efficiency is important, such as server rooms, utility spaces, and dedicated energy storage cabinets.

The modular design allows multiple units to be connected in parallel, enabling users to expand storage capacity as energy needs grow. Whether supporting daily solar usage, reducing reliance on the grid, or providing backup power during outages, this battery offers flexible performance for evolving energy demands.

By storing excess solar energy generated during the day for use at night or during peak tariff periods, the Revov LiFe-4U-IntBMS-B100-5.1 helps reduce electricity costs and increase energy independence. Combining durability, safety, and scalable design, it stands as a reliable and future-ready energy storage solution for modern renewable energy systems.
