Revov 2LIFE-R9-UBMS

Revov 2LIFE-R9-UBMS

Revov 2LIFE-R9-UBMS

Spesifications

Model R100
Battery Type LiFePO4
Battery Capacity 100Ah
Power Capacity 5.1kWh
Voltage
Nominal 51.2V
Float Charge 54.5V
Absorption Charge 55.5V
Current
Maximum Charge/Discharge 80/80A
DoD 100%
Weight & Dimensions
Dimensions [LxWxH, mm] 495mm x 442mm x 170mm
Battery Weight 42kg
Temperature
at Charging 0 – 45°C
at Discharging -10 – 45°C
Other
Enclosure Protection IP20
Design Cycle Life 7000
Communications Interface CAN Bus
Compatible Inverters All leading inverter brands
Storage Conditions 15 – 25°C at 50% SoC
(charge every 6 months)
Warranty 10 years / 3500 cycles

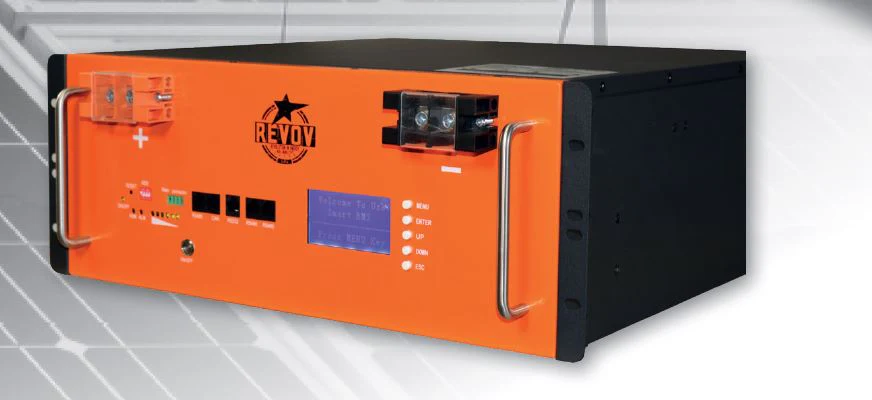

The Revov 2LIFE-R9-UBMS-R100-5.1 is a high-quality lithium iron phosphate (LiFePO₄) battery designed to provide reliable, efficient, and sustainable energy storage for residential and small commercial applications. With a 5.1kWh capacity, this advanced battery solution is ideal for solar self-consumption, backup power, and hybrid energy systems.

Built using second-life LiFePO₄ cells, the 2LIFE-R9-UBMS-R100-5.1 offers an environmentally responsible approach to energy storage without compromising performance or safety. Lithium iron phosphate chemistry is widely recognized for its excellent thermal stability, enhanced safety profile, and long cycle life compared to traditional lead-acid batteries. This ensures consistent output, deeper depth of discharge, and reduced maintenance requirements over time.

The battery is equipped with an advanced Universal Battery Management System (UBMS), which continuously monitors individual cell voltage, current, and temperature. This intelligent system protects against overcharging, over-discharging, overheating, and short circuits, helping to extend battery lifespan while maintaining safe and stable operation. The integrated communication capabilities enable seamless compatibility with a wide range of hybrid and off-grid inverters, simplifying installation and system monitoring.

With its 48V configuration and modular design, the Revov 2LIFE-R9-UBMS-R100-5.1 allows for flexible installation and scalability. Multiple units can be connected in parallel to increase overall storage capacity, making it suitable for growing energy demands. Whether used to reduce reliance on the grid, manage peak electricity costs, or provide reliable backup during power outages, this battery delivers dependable performance.

By storing excess solar energy generated during the day for use at night or during interruptions, the Revov 2LIFE-R9-UBMS-R100-5.1 enhances energy independence and supports sustainable power solutions. Combining durability, intelligent battery management, and eco-conscious design, it offers a cost-effective and future-ready option for modern renewable energy systems.
