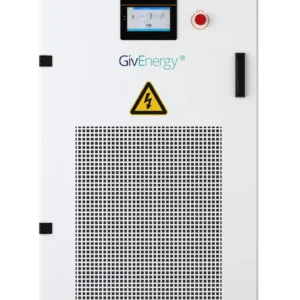

Givenergy 50kW PCS Storage

Givenergy 50kW PCS Storage

Givenergy 50kW PCS Storage

Our Power Conversion system (PCS) provides a wide range of operating modes to meet the requirements of your installation.

Compatible with our high voltage battery packs, almost any size of storage capacity is possible.

Built-in black start functionality can provide resilience to sites with power
supply taken from both AC and DC to ensure they can always stay energised.

Why Givenergy

• No. 1 UK’s best-seller – now in South Africa.
• Launched in 4 continents, and counting.
• 2500 tonnes of CO2 saved daily.
• <1 day installation turnaround.
• 5,000+ connections made per month.
• 20 major wholesalers globally.
• 78 million hours of running monitoring data
• 93% electricity round trip efficiency
• 100% compatible with all solar PV systems
• Store green energy – either from renewables, and/or from the grid via off-peak tariffs.
• Cut both your energy costs and your carbon emissions.

Features

• Flexible Rate Tariff Charge the battery off-peak when it’s cleaner, greener and less costly then discharge the battery during peak times for maximum saving.
• 5 Year Warranty Supplied with a full manufacturer’s warranty. Our SA team are on hand to help you should any issues arise.
• Flexible Control Control and monitor the system via GivEnergy cloud or via an external signal.
• Adjustable Power Rating With our EMS, control the charge and discharge rates based on predefined parameters.
• Industrial & Commercial Suitable for a wide range of applications. Can be installed internally or in a custom-built container.
• Modular Design Need a larger capacity? Modular design allows for multiple units to be installed in parallel.

• The GivEnergy 50 kW PCS Storage system is a commercial-grade power conversion and energy storage solution designed to help businesses and industrial sites get more value from renewable generation and grid power. At its core, the 50 kW PCS (Power Conversion System) acts as a bi-directional inverter that efficiently manages power flows between a high-voltage battery bank, on-site loads, and the utility grid. This flexible, scalable platform supports a wide range of applications including peak shaving, demand management, grid services, backup power, and energy cost reduction strategies.

  Integrated Power Conversion & Storage Control
  The 50 kW PCS is engineered to convert AC power from the grid or solar inverters into DC power for charging the connected battery system, and vice-versa. Its bi-directional nature means it’s capable of both charging and discharging at high efficiency, often exceeding 97 %. This capability allows facilities to store excess renewable energy for use during peak demand periods, or to take advantage of time-of-use tariffs by charging batteries when electricity is cheaper and discharging when it’s more expensive. The system also supports black-start functionality, meaning it can energise local loads independently in certain outage scenarios — a valuable resilience feature for commercial operations.

  Modular & Scalable for Growing Needs
  Although the 50 kW PCS is a powerful standalone unit, GivEnergy’s modular design philosophy makes it possible to combine multiple PCS units and battery racks to create much larger energy storage configurations. For operations that may grow or increase energy demands over time, this scalability enables incremental expansion to multi-megawatt-hour storage systems without needing bespoke hardware redesigns. The flexibility also helps integrate the PCS with a variety of high-voltage battery capacities to suit specific site requirements.

  Smart System Management
  GivEnergy’s PCS works in concert with an advanced Energy Management System (EMS), which gives operators the ability to monitor and configure performance parameters in real time. Through cloud connectivity and built-in communications interfaces (such as CAN, Modbus, or Ethernet), users can set charge/discharge schedules, regulate power export limits, and gather detailed operational analytics. This level of control enhances energy optimisation and can improve return on investment by more precisely aligning storage behaviour with site demands.

  Industrial Reliability & Safety
  Designed for commercial environments, the PCS typically meets robust IP ratings and incorporates safety protections suitable for demanding installations. Its support for high-voltage LiFePO₄ battery chemistry ensures long life, stable performance, and reduced thermal risk compared with some traditional battery technologies. Remote monitoring capabilities also contribute to preventive maintenance and quicker issue resolution.

  In summary, the GivEnergy 50 kW PCS Storage system is a versatile, efficient, and scalable commercial energy storage solution that leverages smart power conversion and intelligent energy management to reduce energy costs, enhance resilience, and support sustainable power usage strategies.
