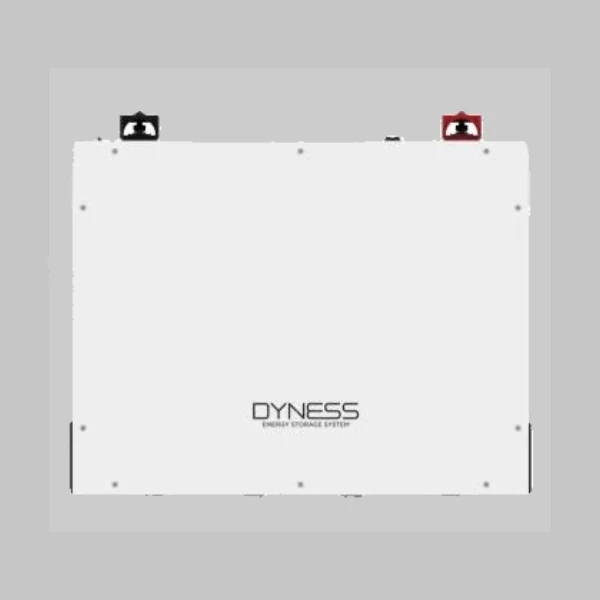

Dyness DL5.0C 5.12KWH Battery
Dyness DL5.0C 5.12KWH Battery
Dyness DL5.0C 5.12KWH Lithium Battery
Dyness DL5.0C 5.12KWH for sale DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring, and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max. Power Charge/Discharge Current | Charge 75A/Discharge 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55°C/-20~55°C (with heating function) |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 90% DOD
The Dyness DL5.0C 5.12kWh Lithium Battery is a compact, reliable, and high-performance energy storage solution designed to meet the needs of residential and small business solar systems. Engineered with advanced lithium-ion technology, this battery provides dependable power storage, enhanced safety features, and long-lasting performance, making it an excellent choice for homeowners who want greater control over their energy usage and backup capability.
With a usable capacity of 5.12 kWh, the Dyness DL5.0C is ideal for households with moderate electricity consumption. This size allows users to store excess energy generated by solar panels during the day and use it during the evening, overnight, or during grid outages like load shedding. By increasing solar self-consumption and reducing dependence on utility power, the DL5.0C can help lower electricity costs and improve overall energy efficiency.
Safety and durability are core features of the DL5.0C battery. It incorporates a smart Battery Management System (BMS) that continuously monitors key parameters such as voltage, current, temperature, and state of charge. The BMS ensures balanced charging, protects against overcharge and deep discharge, and mitigates thermal risks—all of which contribute to a longer service life and safer operation in residential environments.
The Dyness DL5.0C is also designed for flexibility and scalability. Users can connect multiple units in parallel to expand total battery capacity as energy needs grow, making it a future-ready solution for evolving household demands. This modularity ensures that the system can adapt over time without requiring complete system replacement.
Integration with a wide range of solar inverters further enhances the battery’s versatility. Whether installed as part of a new solar array or added to an existing system, the DL5.0C offers seamless compatibility with many leading inverter brands, simplifying installation and configuration.
Physically, the battery is compact and suitable for indoor installation in areas such as garages, utility rooms, or dedicated battery enclosures. Its robust build quality ensures dependable performance in typical residential conditions.
Overall, the Dyness DL5.0C 5.12kWh Lithium Battery offers a balanced combination of safety, efficiency, and adaptability. It empowers homeowners to maximise solar energy use, gain reliable backup power, and take a significant step toward energy independence.
