50kVA FAW Diesel Generator Generator for sale

PRIME POWER	50kVA
STANDBY POWER	55kVA
PHASE	Three

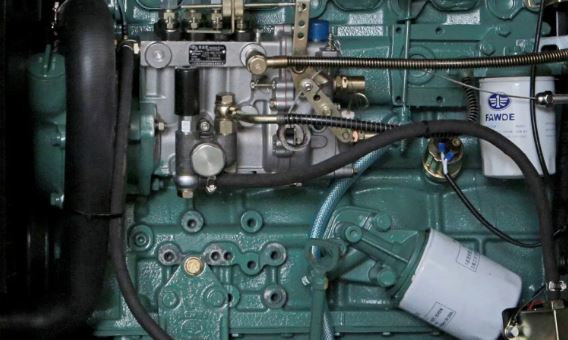

Engine Specifications:

ENGINE BRAND	FAW
ENGINE MODEL	4DX23-65D
NUMBER OF CYLINDERS	4
ENGINE RATED POWER	48kW
ENGINE DISPLACEMENT	3.86l
METHOD OF ASPIRATION	Turbocharged & Intercooled
COOLING METHOD	Radiator water-cooled
GOVERNOR SYSYEM	Electronic
ENGINE SPEED	1500rpm

Alternator Specifications:

ALTERNATOR BRAND	Stromer
VOLTAGE REGULATION	± 1%
VOLTAGE	230v/400v
RATED FREQUENCY	50Hz
POWER FACTOR	0.8

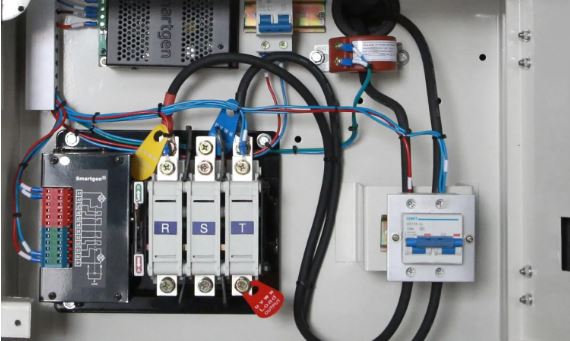

Automatic Mains Failure Panel:

STANDARD	Included in price
CONTROLLER MAKE	Control with Smartgen automatic transfer switch
CONTROLLER MODEL	420 Smartgen electronic controller
ATS SYSTEM	Four-pole electrically and mechanically interlocked ATS



CHASSIS

• The complete generator set is mounted as a whole on a heavy duty fabricated, steel base frame
• Steel chassis and anti-vibration pads
• Base frame design incorporates an integral fuel tank
• The generator can be lifted or carefully pushed/pulled by the base frame
• Dial type fuel gauge on the fuel tank

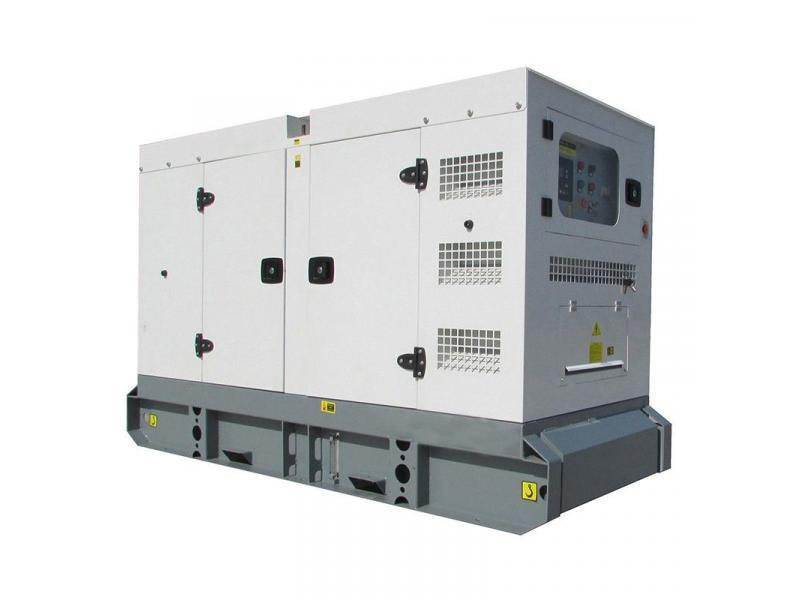

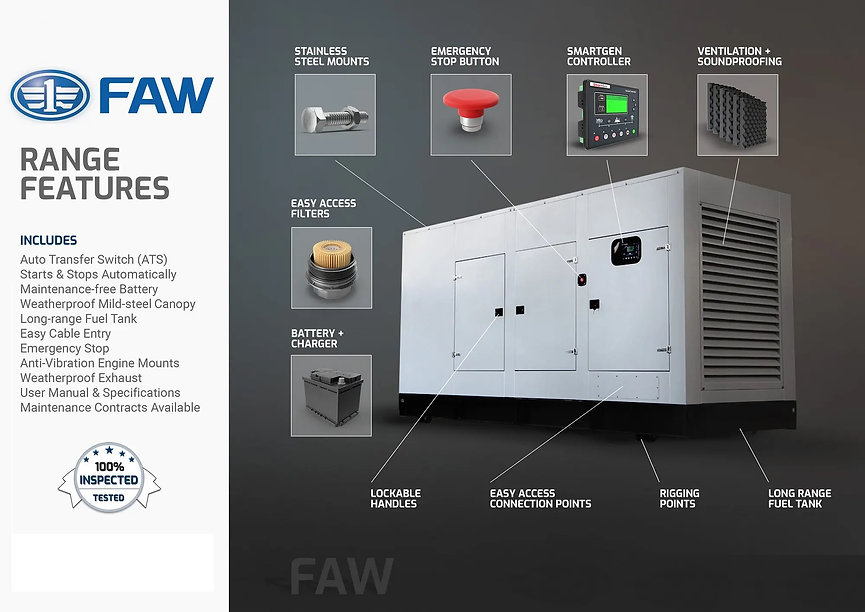

CANOPY

• Ventilation parts are designed with modular principles
• Weather resistant and lined with sound reducing foam
• All metal canopy parts are painted by powder paint
• Panel window
• Lockable doors on each side
• Easy maintenance and operation
• Easy lifting and moving
• Thermally insulated engine exhaust system
• Exterior emergency stop push button
• Sound attenuated

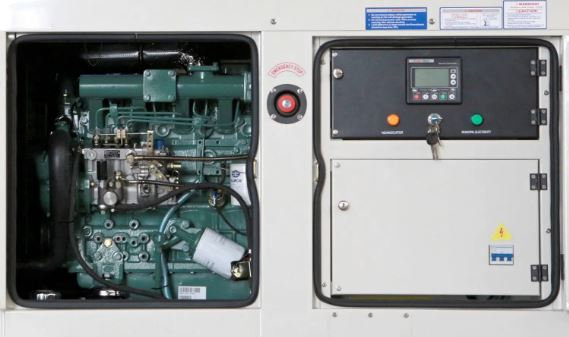

CONTROL SYSTEM

Control supervision and protection panel is mounted on the genset base frame. The control panel is equipped as follows:

Auto mains failure control panel

• Controller with Smartgen automatic transfer switch
• 420 Smartgen electronic controller
• Emergency stop push button
• Static battery charger
• Three-pole electrically and mechanically interlocked ATS

Generating set control module 420 Smartgen features

• This module is used to monitor a mains supply and automatically start a standby generating set
• Shutdown alarms
• STOP/RESET-MANUAL-AUTO-TEST-START

Metering via LCD display

• Mains volts (L-L/L-N)
• Generator amps (L1, L2, L3)
• Generator frequency; generator (cos)
• Engine hours run; plant battery (volts)
• Engine oil pressure (psi and bar)
• Engine speed (rpm)
• Engine temperature (degrees C)

Automatic shutdown and fault conditions

• Under/over speed; fail to start
• High engine temperature; fail to stop
• Low oil pressure; charge fail
• Under/over generator volts
• Under/over generator frequency;
• Emergency stop/start failure
• Under/over mains voltage
• Charge failure



*All ratings are quoted at maximum ratings at sea level and derating will be applicable for altitude and power factor.
